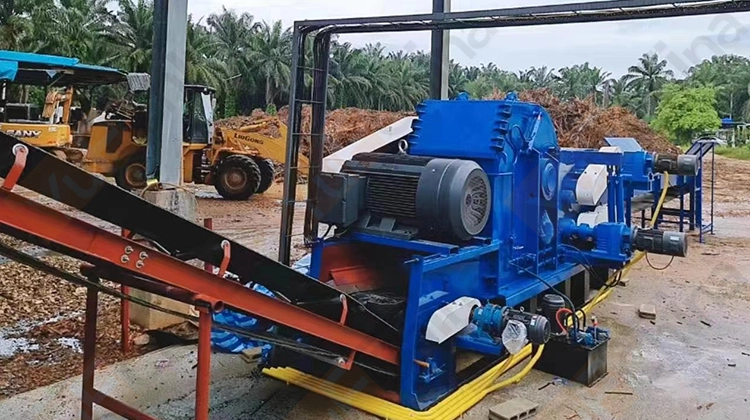

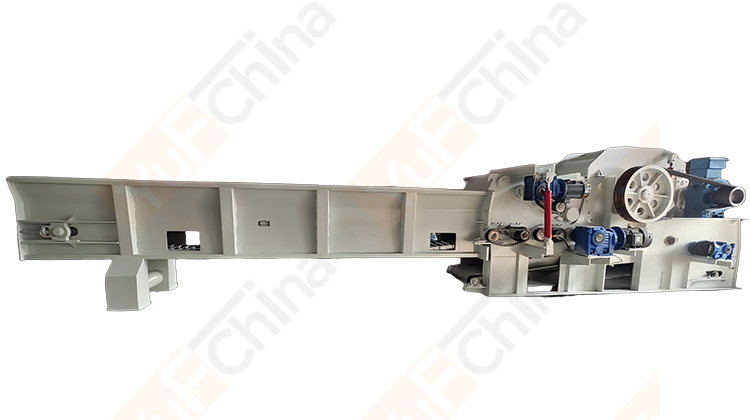

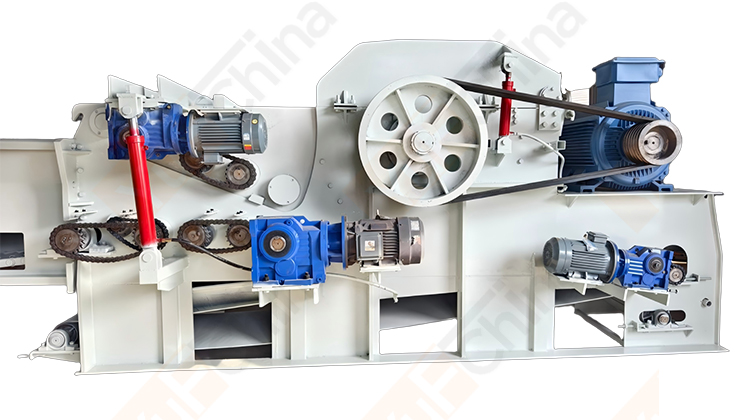

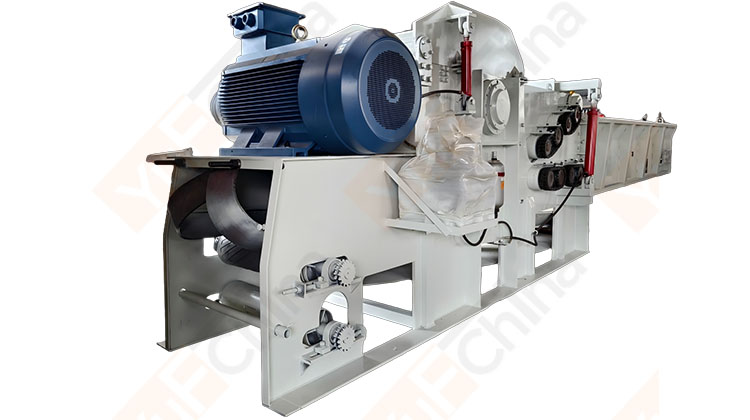

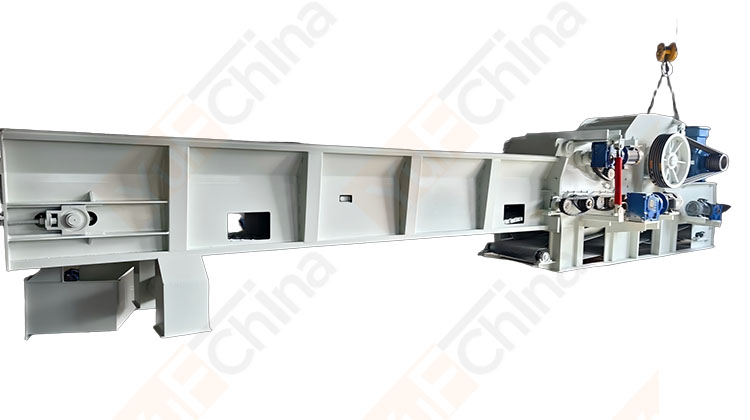

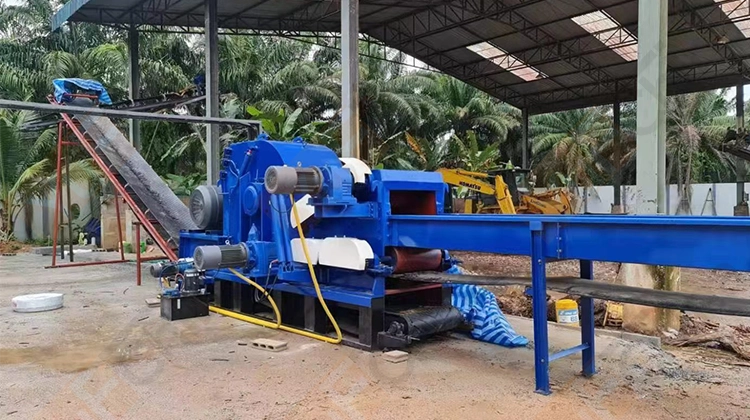

200kw GX2113 drum wood chipper for sale
200kw GX2113 drum wood chipper machine is mainly used to crush big wood logs or timber
wood branches, furniture waste, long bamboo into small chips , the thickness of last chips is 1.5mm/3mm, length and width about 20-50mm, the knives gap can be adjusted,then outlet chips dimension will be adjusted.
The wood crusher export to many countries, like S. Korea, Russia, Thailand, Japan, India, etc.
Feeding Conveyor Type
For large capacity wood chipper wood crusher , it usually adopts chain conveyor.
For small model wood chipper, it usually adopts belt conveyor.
Notice for industrial drum wood chipper
Wood chipper machine has limit feeding door dimension ,raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted.
The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.
Technical Parameter
Model | GX2113 |
---|---|
Feed conveyor length (m) | 6 |
Discharge conveyor length (m) | 11 |
Feed port size (mm) | 450*700 |
Quantity of flying knives (piece) | 3 |
Knife roller speed (rpm) | 420 |
Max feed diameter (mm) | 400 |
Size of wood chips (mm) | 30-50mm |
Production capacity (tph) | 20-30 |
Main motor power (kw) | 220 |
Power of the feeding roller motor (kw) | 7.5+5.5 |
Oil pump motor power (kw) | 3 |
Weight (kg) | 11840 |
Dimension (mm) | 3670*2517*2050 |
For more models
Model | Max feed size (mm) | Capacity (t/h) | Weight (T) |
---|---|---|---|
216 | 220 | 3-5 | 4.5 |
218 | 300 | 44783 | 7 |
2113 | 400 | 20-30 | 11.84 |
